Y2 Series 3-phase Cast Iron Housing Induction Motor
|
Overview |
||
|
Place of Origin: China |
Brand Name: KOREPOWER |
Model Number: Y |
|
Power: 0.37KW-315KW |
Speed: 1500rpm/1800rpm |
Output: AC Three Phase |
|
Certificates: ISO, CE, SASO, ETC |
Trade Terms: FOB,CNF,CIF, CPT |
Delivery Time: 30 Days |
|
Payment Terms: TT,LC,OA,DP, Western Union, Paypal, Money Gram, etc. |
||
Y2 Series 3-phase Cast Iron Housing Induction Motor Suppliers
Y2 series motor is totally enclosed and fan cooled 3 phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards. Y connection for motor of 3kw and below. Delta connection for 4kw and above.
Application:
Y2 series 3 phase motors are widely used as driving equipment of various machinery such as: machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.
Operating Condition:
Ambient temperature: -15°c to 40 °c
Altitude: ≤1000m
Rated voltage: 380V (400V, 415V, 220V, 230V, 240V, etc. on request)
Rated frequency: 50HZ (60HZ on request)
Duty: Continuous(S1)
Insulation class: Class B, Class F
Protection class: IP44, IP54, IP55
Cooling method: IC0141

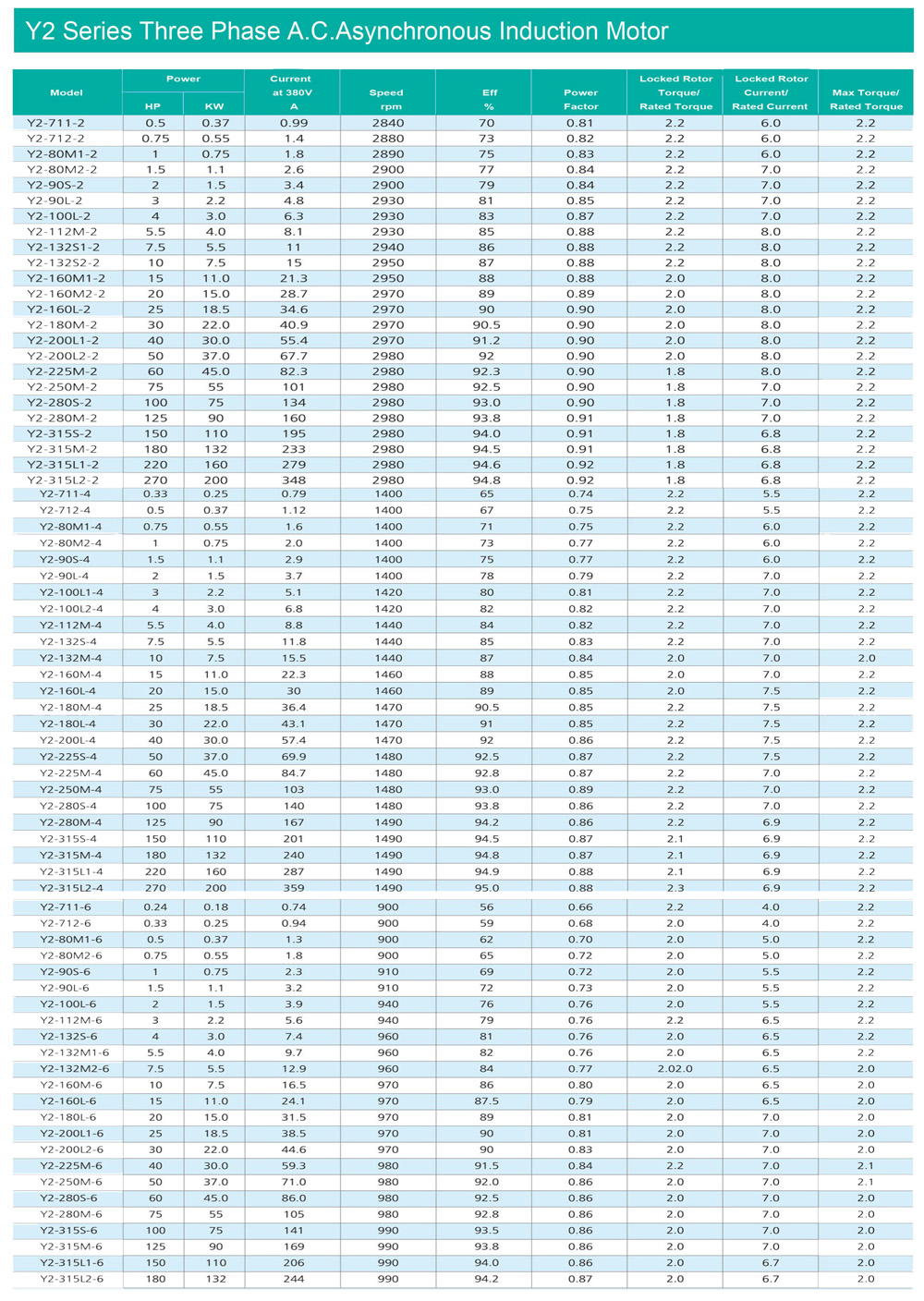

Technical Data:
