Y series 3-phase Cast Iron Housing Induction Motor
|
Overview |
||
|
Place of Origin: China |
Brand Name: KOREPOWER |
Model Number: Y |
|
Power: 0.37KW-315KW |
Speed: 1500rpm/1800rpm |
Output: AC Three Phase |
|
Certificates: ISO, CE, SASO, ETC |
Trade Terms: FOB,CNF,CIF, CPT |
Delivery Time: 30 Days |
|
Payment Terms: TT,LC,OA,DP, Western Union, Paypal, Money Gram, etc. |
||
Y series 3-phase Cast Iron Housing Induction Motor Suppliers
Y series motor is totally enclosed and fan cooled three phase squirrel cage induction motor. It is newly designed in conformity with the relevant rules of IEC&DIN42673 standards. The Y connection for motor of 3kw and below. And delta connection for 4kw and above.
Application:
Y series motors are widely used in places where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.
Operating Condition:
Ambient temperature: -15°c to 40 °c
Altitude: ≤1000m
Rated voltage: 380V (400V, 415V, 220V, 230V, 240V, etc. on request)
Rated frequency: 50HZ (60HZ on request)
Duty: Continuous(S1)
Insulation class: Class B, Class F
Protection class: IP44, IP54, IP55
Cooling method: IC0141

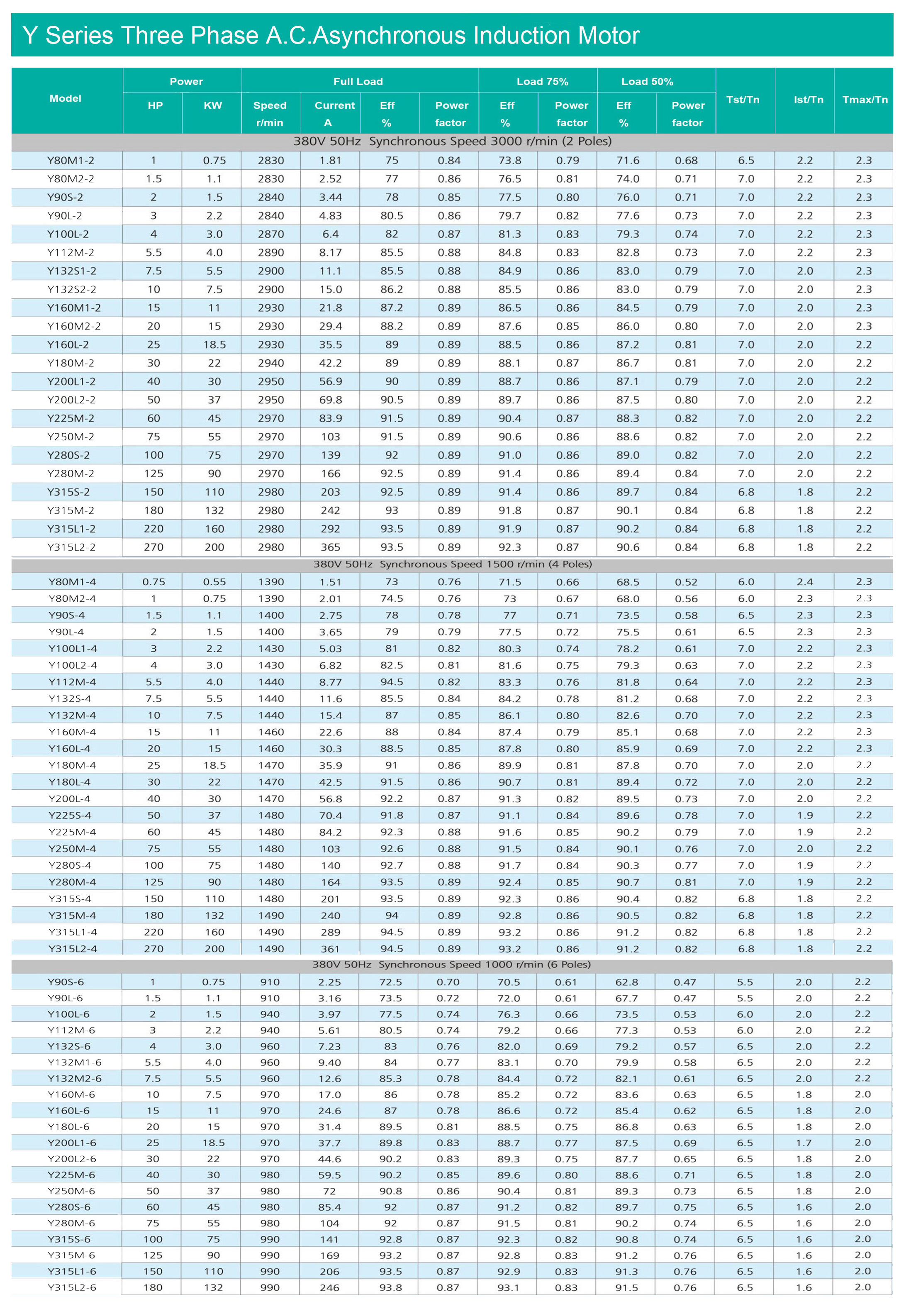

Techinical Data:
